3 and 4 position headlight switch
« on: November 15, 2011, 06:00:50 PM »

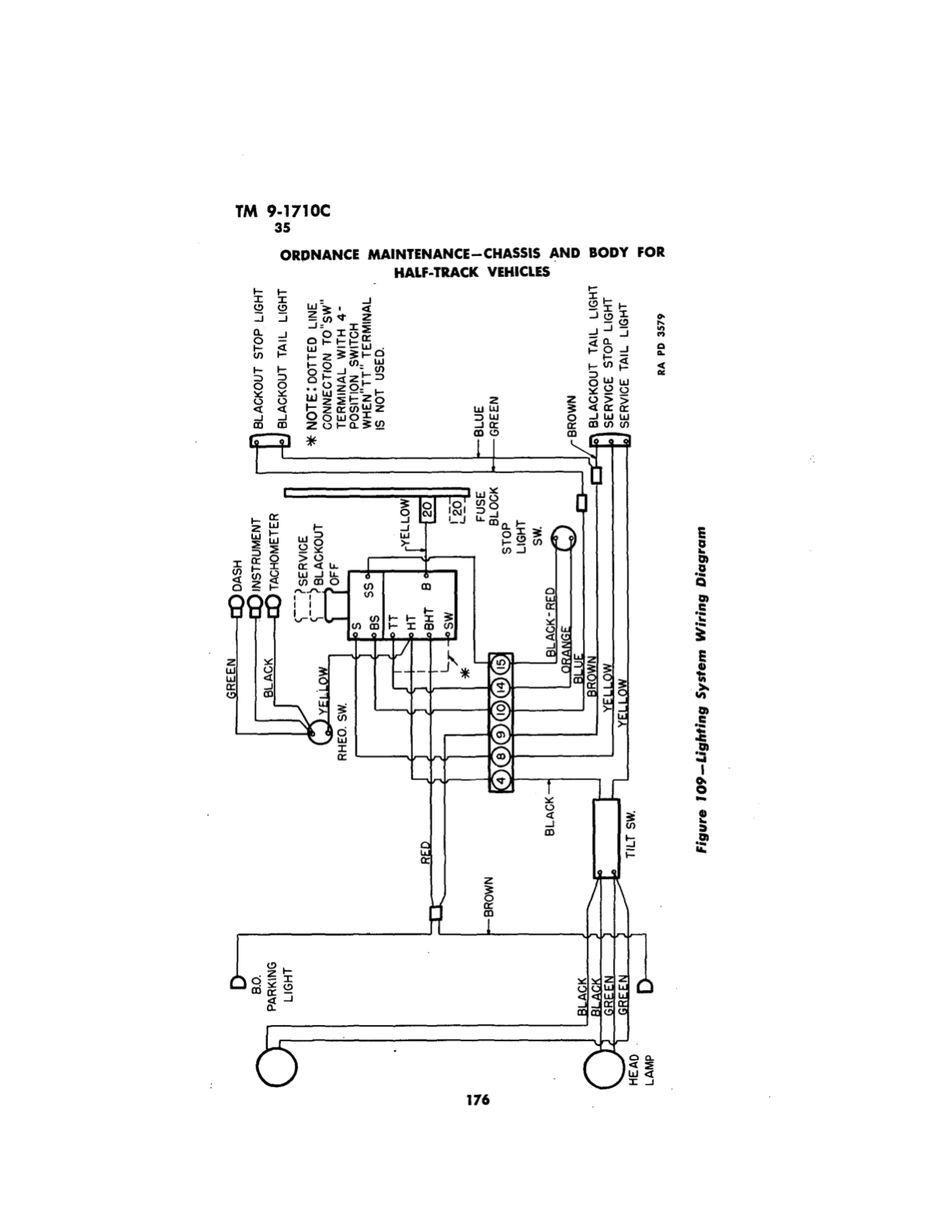

in the manual they mention there is also a 4 position headlight switch option.
http://www.surfacezero.com/g503/data/500/TM_9-1710C_5_.jpg

reproduction switches are being made for the jeeps. has anyone tried one? are they a 3 position?

http://www.vintagejeeps.com/pc-1621-75-switch-main-light-push-pull.aspx
« Last Edit: November 17, 2011, 11:10:10 AM by steve-0 »
Logged

steve-0

  • Administrator
  • Hero Member
  • *****
  • Posts: 1385
Re: 3 position headlight switch
« Reply #1 on: November 16, 2011, 01:19:23 AM »
well im going to answer my own question.
the jeep one is a match. it is a 4 position switch according to gpw/mb TM 9-803     it also has the same amount of contacts with the proper identifying letters.

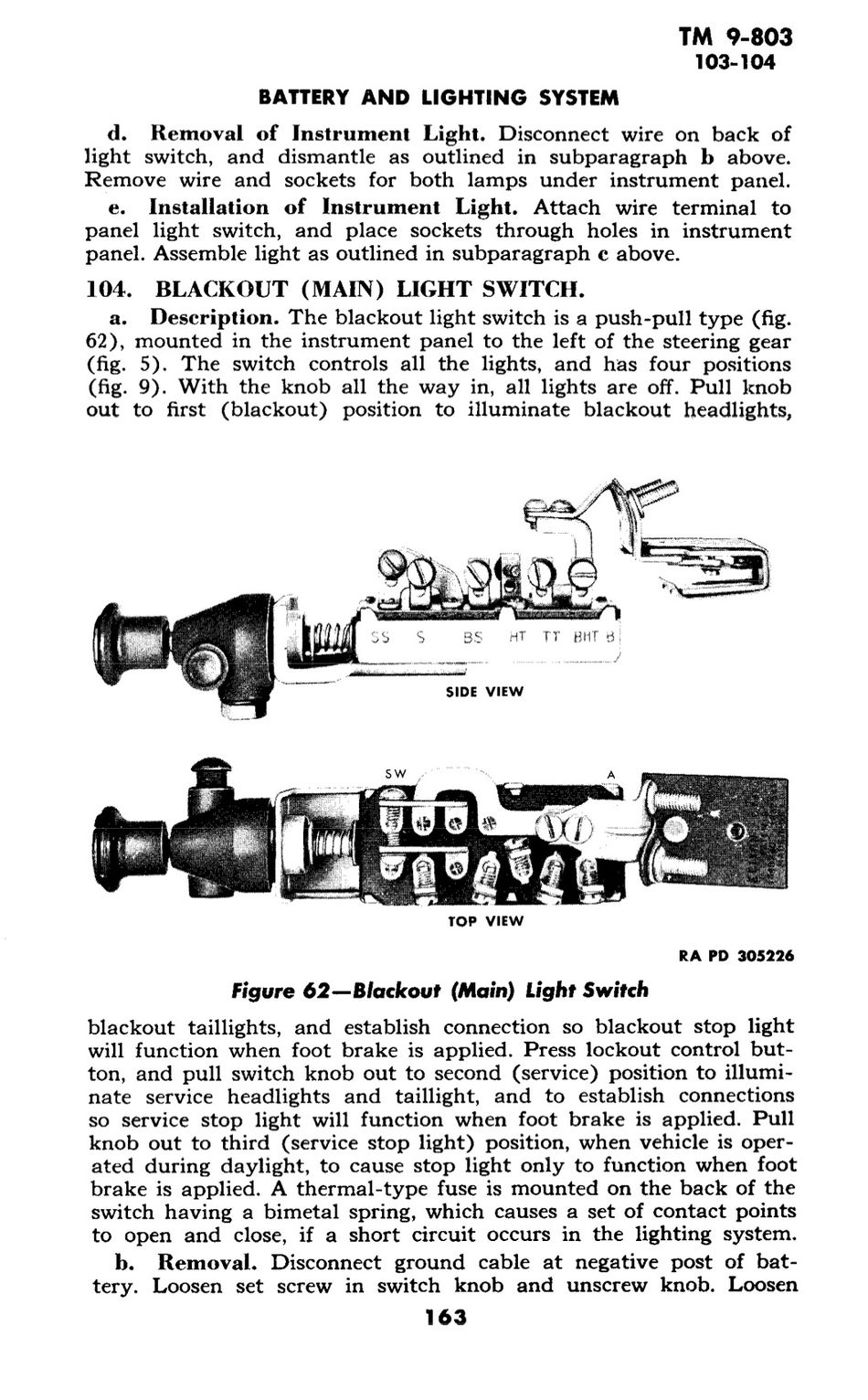

jeep manual TM 9-803

http://www.surfacezero.com/g503/data/500/17PWha.jpeg

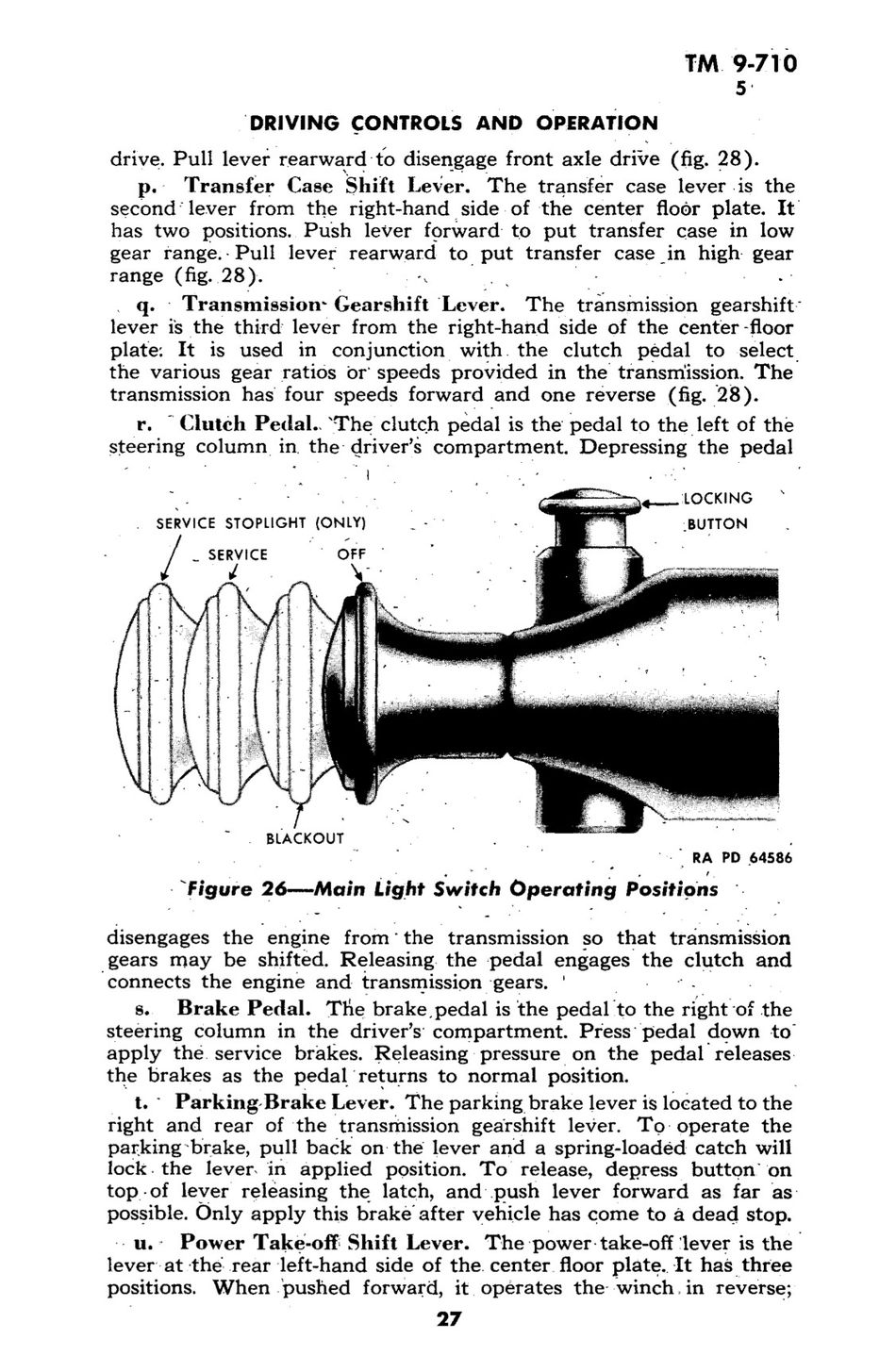

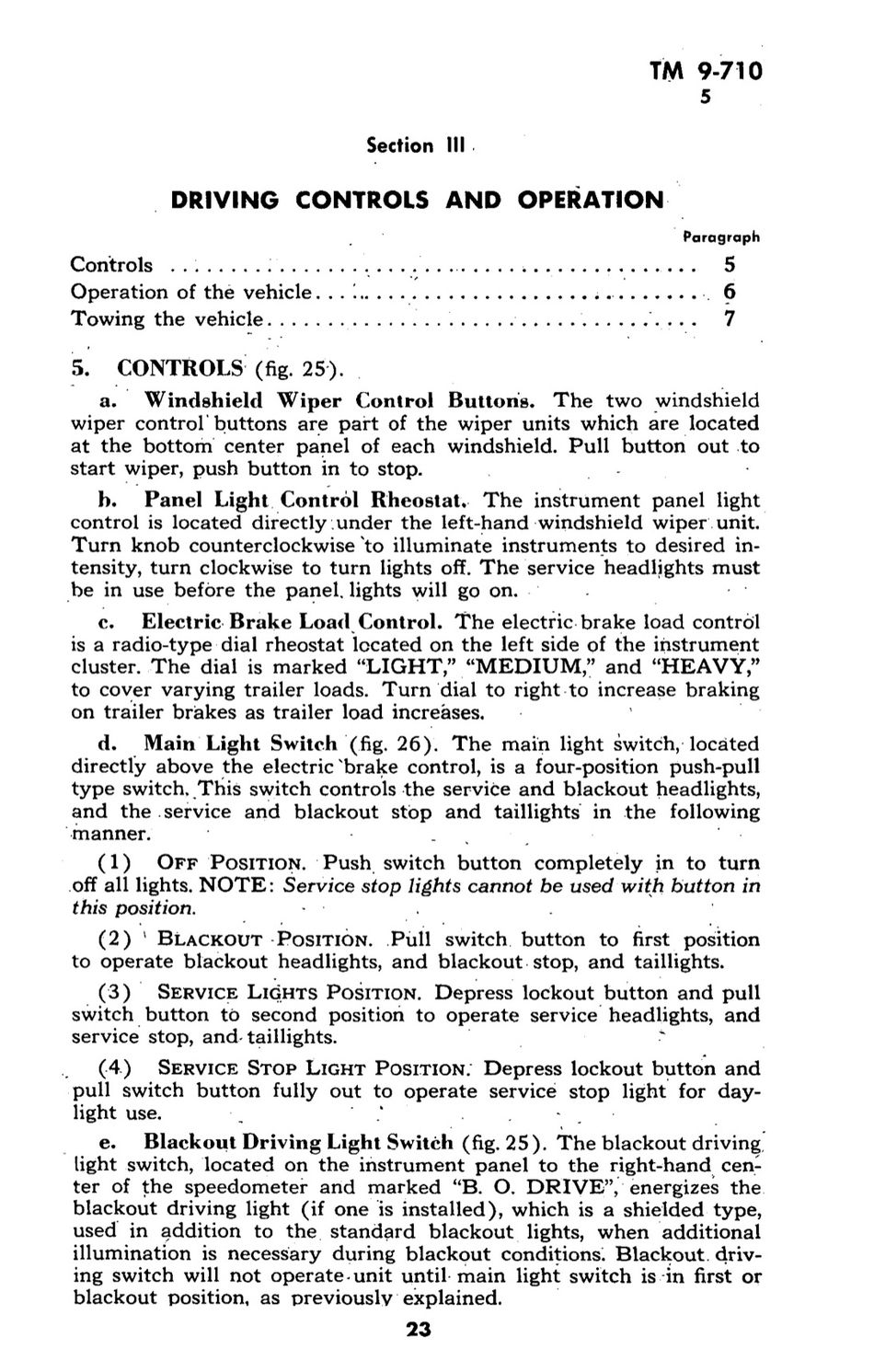

halftrack manual TM 9-710

http://www.surfacezero.com/g503/data/500/TjftHM.jpeg

http://www.surfacezero.com/g503/data/500/kmAaHm.jpeg
« Last Edit: November 16, 2011, 01:27:25 AM by steve-0 »
