Author Topic: New halftrack, Cool Cat  (Read 81719 times)

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack
« Reply #15 on: April 09, 2020, 02:18:03 PM »
.

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack
« Reply #16 on: April 09, 2020, 02:20:26 PM »
/

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack
« Reply #17 on: April 09, 2020, 02:21:04 PM »

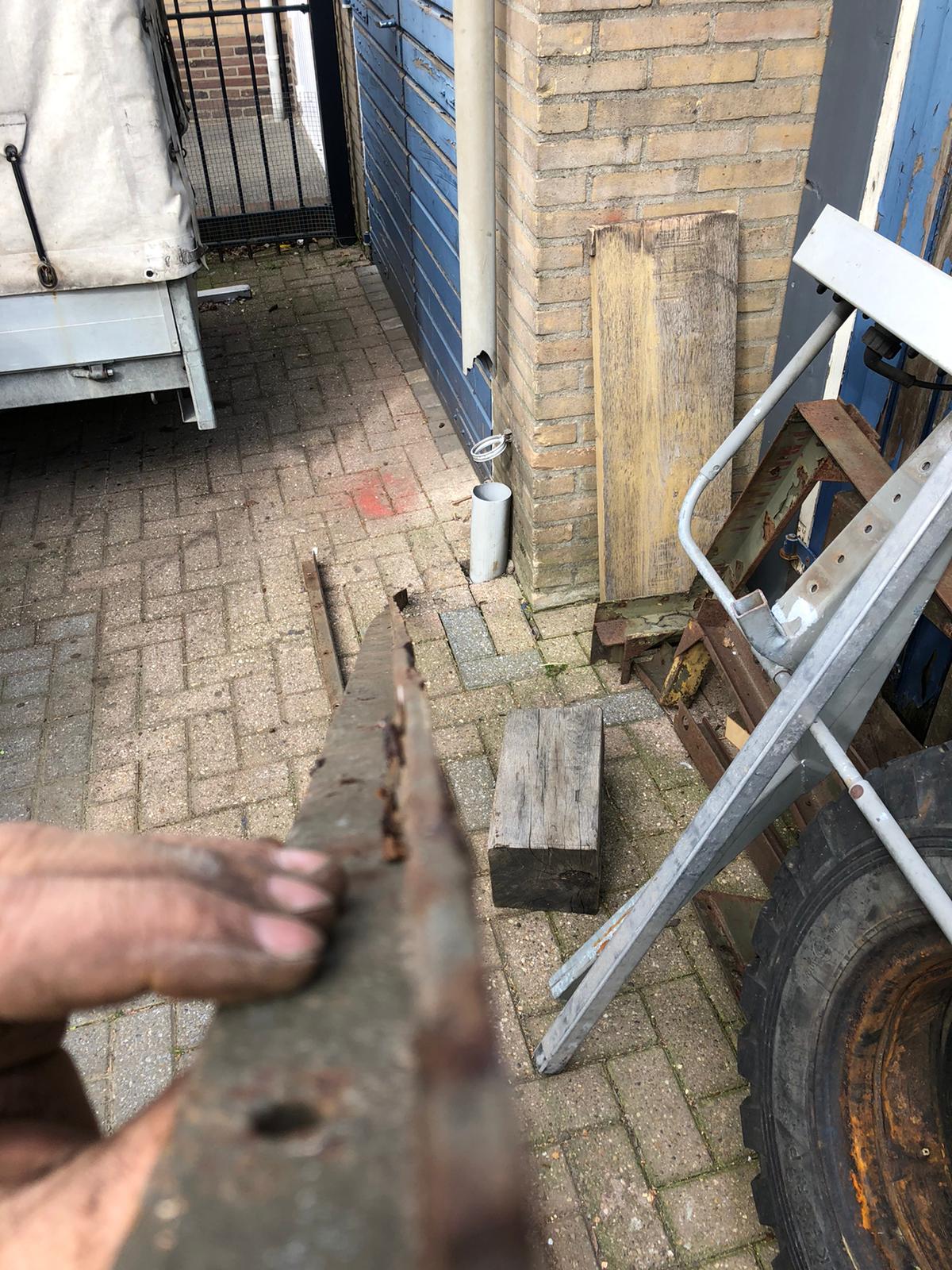

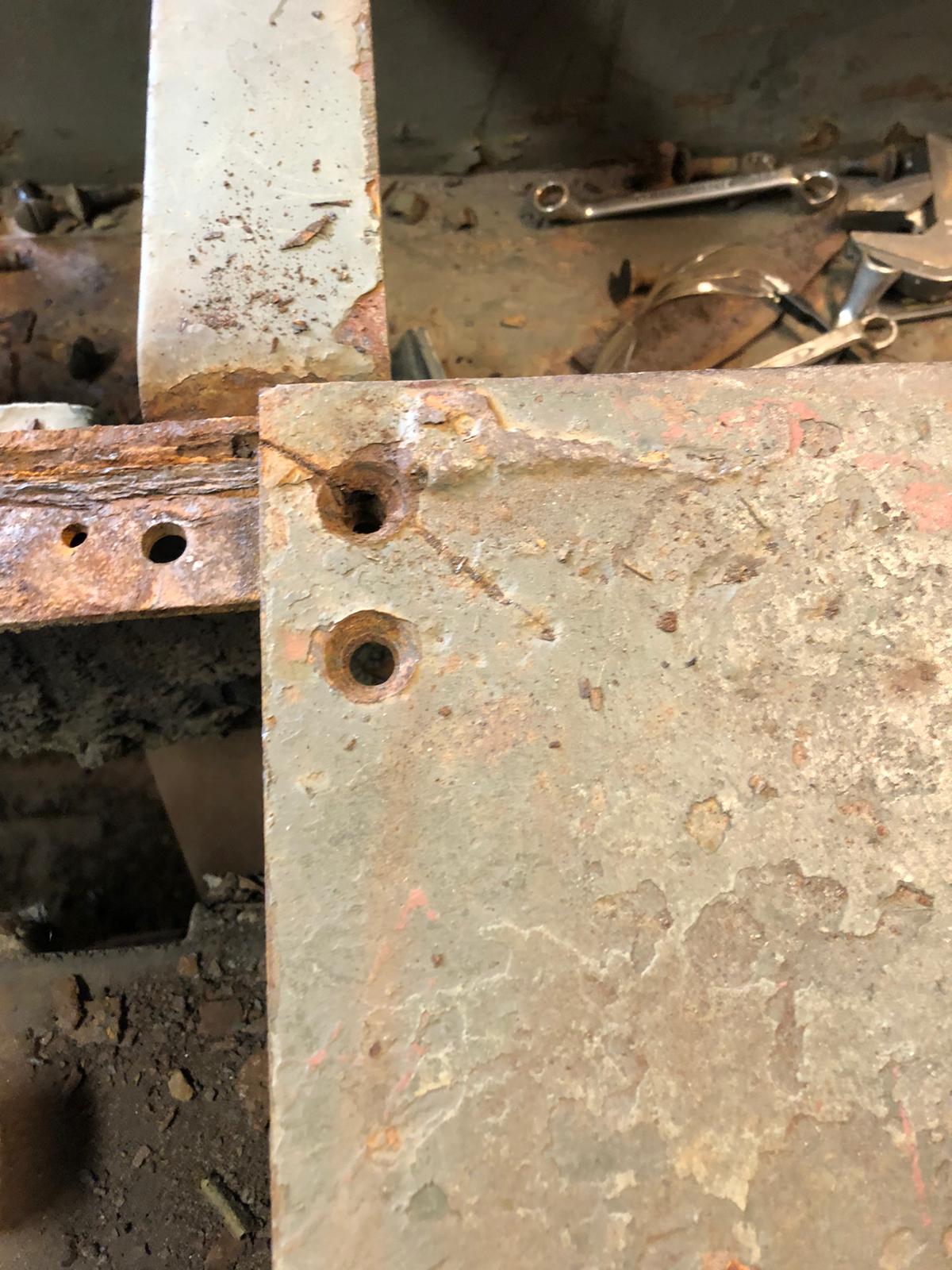

these are the holes for the m3 or m3a1 version I was talking about.

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack
« Reply #18 on: April 09, 2020, 02:27:47 PM »
.

RB-058

  • Full Member
  • ***
  • Posts: 123
Re: New halftrack
« Reply #19 on: April 09, 2020, 02:47:23 PM »
Nice work Tuur!

Rob
1943 White Halftrack M4A1
1944 White Halftrack M16

brian in denver

  • Newbie
  • *
  • Posts: 44
Re: New halftrack
« Reply #20 on: April 09, 2020, 05:59:46 PM »
can you take closer detailed pics of the radio J-boxes, and the wire routing ?

thank
BB

8683jb

  • Hero Member
  • *****
  • Posts: 891
Re: New halftrack
« Reply #21 on: April 09, 2020, 06:27:11 PM »
That's a heck of a project Tuur! Thanks for saving another half-track.

Jon
'42 Autocar M2A1
'41 Nash Kelvinator Ben Hur trailer

MVPA member

spec4don

  • Hero Member
  • *****
  • Posts: 981
Re: New halftrack
« Reply #22 on: April 09, 2020, 08:46:55 PM »
 Bravo Sir, looks like you have a good base to start with!

Don G.
1941 M2A1 not restored
1942 M3 Diamond T Mostly restored
1943 M3A1 Under restoration
1967 M51A2 Tractor
1945 WC 63 needs restoration
1967 M36 Long wheel base duece
1951 M135 GMC Fire truck conversion

Tapper02

  • Hero Member
  • *****
  • Posts: 630
Re: New halftrack
« Reply #23 on: April 09, 2020, 09:09:18 PM »
can you take closer detailed pics of the radio J-boxes, and the wire routing ?

thank
BB

YES!  Please....
1942 Diamond T M3 Halftrack
  (Being restored to an M3A1 configuration)
  Frame Number M31789
  Ordnance Number 3692
  Hood Number USA W403570-S
1944 Schelm Bros. M10 Ammunition Trailer
  Serial Number 16959
MVPA # 30507

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack
« Reply #24 on: April 10, 2020, 01:27:48 AM »
can you take closer detailed pics of the radio J-boxes, and the wire routing ?

thank
BB

YES!  Please....

I will do when I get back home

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack Cool Cat
« Reply #25 on: April 14, 2020, 01:15:19 PM »

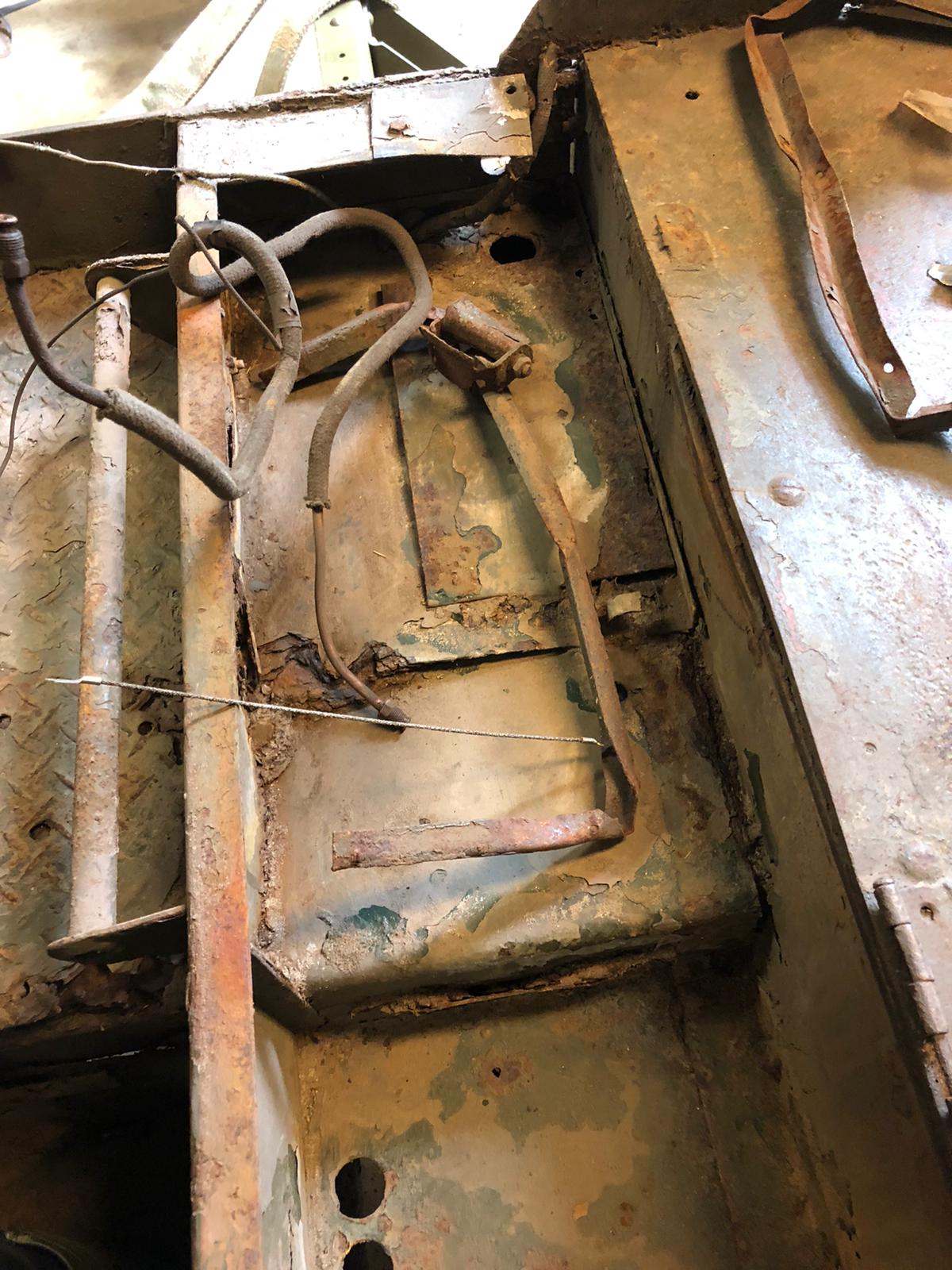

So the rear bed is going to be a lot of work and it was to get if of but managed to save almost every bolt just had to cut a couple because they had them welded. the rear bed is going to be a lot of work but first I will take the tracks of and remove everything of the rear frame. You could see it was used on a beach of all the sand that was everywhere  ;D I want to have everything cleaned on the frame before my engine comes back. I don't want to rebuild it in dirt   :-\ All the track armoured plates except for 2 are cracked and bend so I'll probably replace all because it won't be straight to start. About the radio boxes I took some pictures but they cut them because they didn't need them. I'll make some close up photo's of the boxes in the next post.

and I gave her a name I saw it on a original picture of a halftrack : Cool Cat
« Last Edit: April 14, 2020, 01:16:50 PM by Tuur »

R.E.Co.

  • Sr. Member
  • ****
  • Posts: 292
Re: New halftrack, Cool Cat
« Reply #26 on: April 14, 2020, 02:30:05 PM »
Keep it up Tuur!  Im sure you can see how much work is before you but it is really worth while in the end.

Jon
1941 White M2
1941 Chevrolet G506 Civilian Dash
1941 Federal 94-43 4-5 Ton COE
1918 3 Ton Field Gun Trailer

Torque

  • Sr. Member
  • ****
  • Posts: 262
Re: New halftrack, Cool Cat
« Reply #27 on: April 14, 2020, 05:55:15 PM »
Cool Cat... I like it.
 Was it near salt water to cause all the rust? I have parts of 3 and none were near that bad.

coreyelliott

  • Sr. Member
  • ****
  • Posts: 349
Re: New halftrack, Cool Cat
« Reply #28 on: April 16, 2020, 08:15:11 PM »
I like the name!  Your bed does look a little bit corroded, but at least you have something.  Many of us don't even have that much of a bed!

Corey
1941 Autocar M2A1 (M2-13)

Tuur

  • Jr. Member
  • **
  • Posts: 70
Re: New halftrack, Cool Cat
« Reply #29 on: April 19, 2020, 12:29:51 PM »

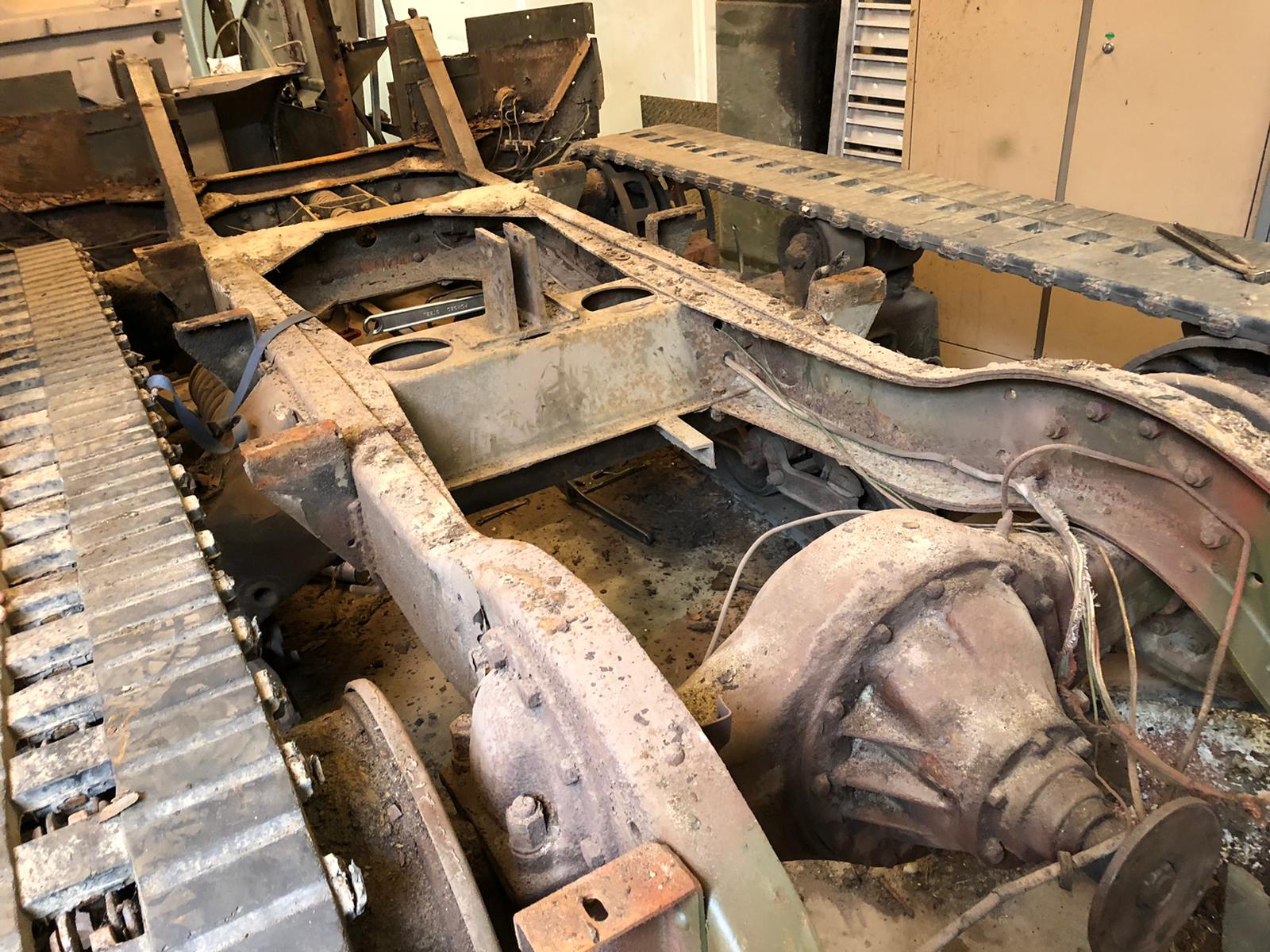

The tracks are of, and man why are they so heavy  ;D it was hard work to all alone so I got some help from my girlfriend with the second track  :D after that the boogie assembly came of and then the rear axle. Some of the bolts had to be cut they wouldn’t budge even when cherry red. some good progress for now. I’ll strip everything of and sandblast it in the next coming weeks.

Heavy work those tracks  :P :P
