Author Topic: M2 rear armor drawings  (Read 7277 times)


SoCalM2

  • Newbie
  • *
  • Posts: 26
Re: M2 rear armor drawings
« Reply #1 on: September 09, 2011, 12:18:30 PM »
Thanks Steve.  I have been trying to get a clear copy of these for a while.  If I get a chance I may convert them to CAD.

Tim

Hadstock

  • Newbie
  • *
  • Posts: 32
Re: M2 rear armor drawings
« Reply #2 on: January 24, 2012, 12:46:34 PM »

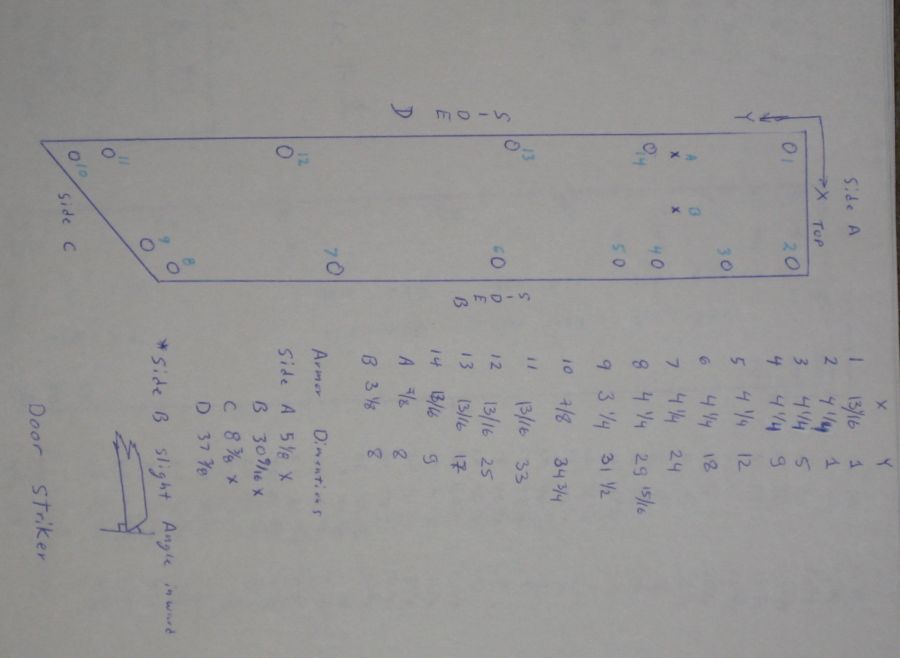

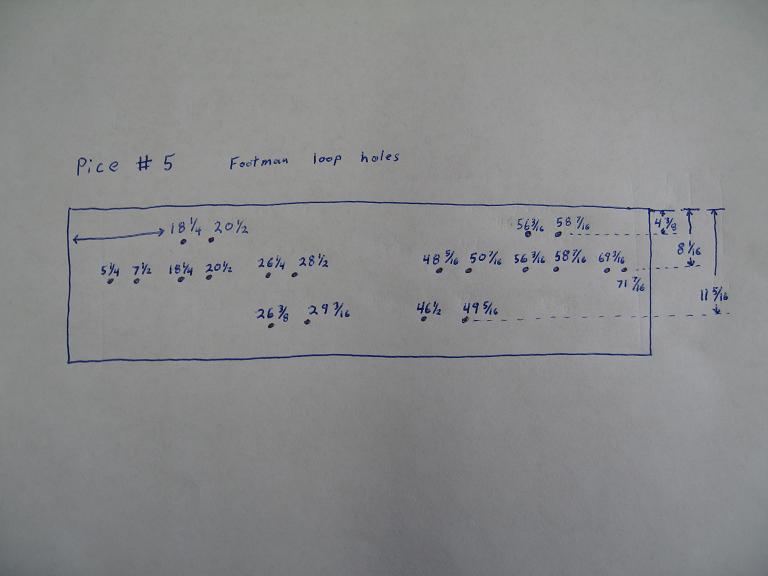

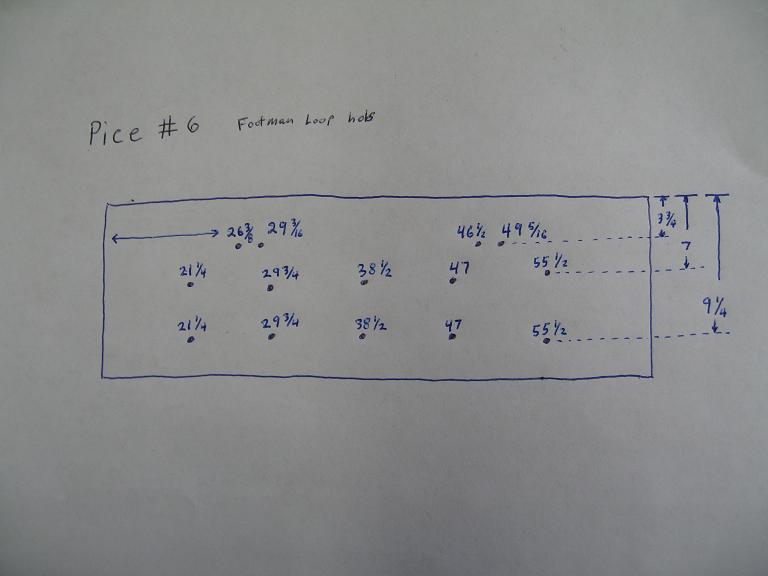

Used these to have repro parts made for 3,4,5,6 & 7 so will let you know how they go together (already have original upper armor). Have fitted just 6 & 7 (it's cold here in Michigan !) but some of the holes do not quite line up, however, could be my rear bed as original armor was torch cut and the rear area above the pintle looks like it pushed something heavy in reverse at some point.
Sheet sizes and gap alignment look good, so just a few holes in the L supports to enlarge as looks like something shifted slightly out of alignment.

Phil.

O.D. HOG

  • Newbie
  • *
  • Posts: 17
Re: M2 rear armor drawings
« Reply #3 on: October 29, 2013, 12:01:34 AM »
Phil sorry if the hole location is a little off.  I did this with a Stanly 25 ft. tape measure one day while waiting to leave after a parade.  By then my half track was "finished" (are they ever really finished) and it was hard to measure in between my bumper / steps.  The other hole measurements were done with the 25 ft. tape and are close +or-  1/16th of an inch.
Take care, Tim Sutter :)
« Last Edit: October 29, 2013, 12:03:20 AM by O.D. HOG »

47lincsled

  • Full Member
  • ***
  • Posts: 154
Re: M2 rear armor drawings
« Reply #4 on: March 10, 2014, 08:15:31 PM »
 I also have all the drawing for M-2 rear armor,as well as battery box top and outside plate, mine were taken from original plates,I only had half of the armor so I made the other half from 1/4 plate.

R.E.Co.

  • Full Member
  • ***
  • Posts: 104
Re: M2 rear armor drawings
« Reply #5 on: June 27, 2016, 09:13:46 PM »
Dose anyone have the rear armor or rear bed for an M2 already in a CAD file?  Thanks.
1941 White M2 Halftrack

Monkeypirate

  • Full Member
  • ***
  • Posts: 141
Re: M2 rear armor drawings
« Reply #6 on: July 31, 2016, 08:39:46 PM »
Are you looking fpr CAD files ot DRW files to take to a waterjet? I have files drawn up in Alibre. I would have to confirm the dimensions befor sending them out though.

steve1973

  • Hero Member
  • *****
  • Posts: 1096
Re: M2 rear armor drawings
« Reply #7 on: August 01, 2016, 12:17:00 AM »
I have CAD files that are correct for the body armor but no track armor or floor.
Steve A.

R.E.Co.

  • Full Member
  • ***
  • Posts: 104
Re: M2 rear armor drawings
« Reply #8 on: August 01, 2016, 11:57:56 AM »
I have a guy that can laser cut the parts so I will have to check with him and see what kind of file format he uses.
1941 White M2 Halftrack

Sprouse

  • Newbie
  • *
  • Posts: 45
Re: M2 rear armor drawings
« Reply #9 on: August 13, 2016, 07:30:17 AM »
HAs anyone come up with the drawings or CAD for the lower bed yet?
WC 63 Restored
M2 not restored
M2A1 early not restored
M2A1 late not restored
M2A1 late not restored

R.E.Co.

  • Full Member
  • ***
  • Posts: 104
Re: M2 rear armor drawings
« Reply #10 on: September 12, 2016, 09:08:32 AM »
Monkeypirate, my guy can use either file format.  If you could send them my way, that'd be great!
1941 White M2 Halftrack

Monkeypirate

  • Full Member
  • ***
  • Posts: 141
Re: M2 rear armor drawings
« Reply #11 on: September 14, 2016, 02:37:52 AM »
PM Sent

vstout

  • Newbie
  • *
  • Posts: 1
Re: M2 rear armor drawings
« Reply #12 on: January 04, 2017, 06:08:26 PM »
I just bought an M2A1 that needs rear armor and doors. If Steve1973 can send me the cad files that would be outstanding. I will get it cut and ready to install in the spring. Thank you very much.

steve1973

  • Hero Member
  • *****
  • Posts: 1096
Re: M2 rear armor drawings
« Reply #13 on: January 04, 2017, 11:23:57 PM »
I've been working with someone that lives a few hours away who knows CAD. He is helping me separate the files and making a PDF drawing sheet to go with each file. My goal is to have a file folder for each armor plate. Each file will contain the CAD file, PDF layout drawing with measurements, photo of actual plate and any instructions such as which holes need counter sinking or where to bend or bevel the plate. This takes a lot of time which I haven't had in a while. Plus I'm trying to get my halftrack back on the road. I hope to have something by Spring March or April.

Steve A.

yd328

  • Hero Member
  • *****
  • Posts: 540
Re: M2 rear armor drawings
« Reply #14 on: October 03, 2017, 06:16:38 AM »
Steve,
Did you ever have a chance to do this?  I may replace my two back plates with repros. The originals have holes cut in them.


Thanks
Gary
